Published in ACS Photonics, 2023
This work demonstrates an ultra-thin 100° wide-field-of-view camera using an inverse-designed multi-level diffractive doublet, achieving a total-track length of only ~2 mm at 850 nm. The camera shows experimentally validated focusing and imaging performance with de-vignetting calibration, offering a pathway toward compact, lightweight WFOV cameras for portable applications.

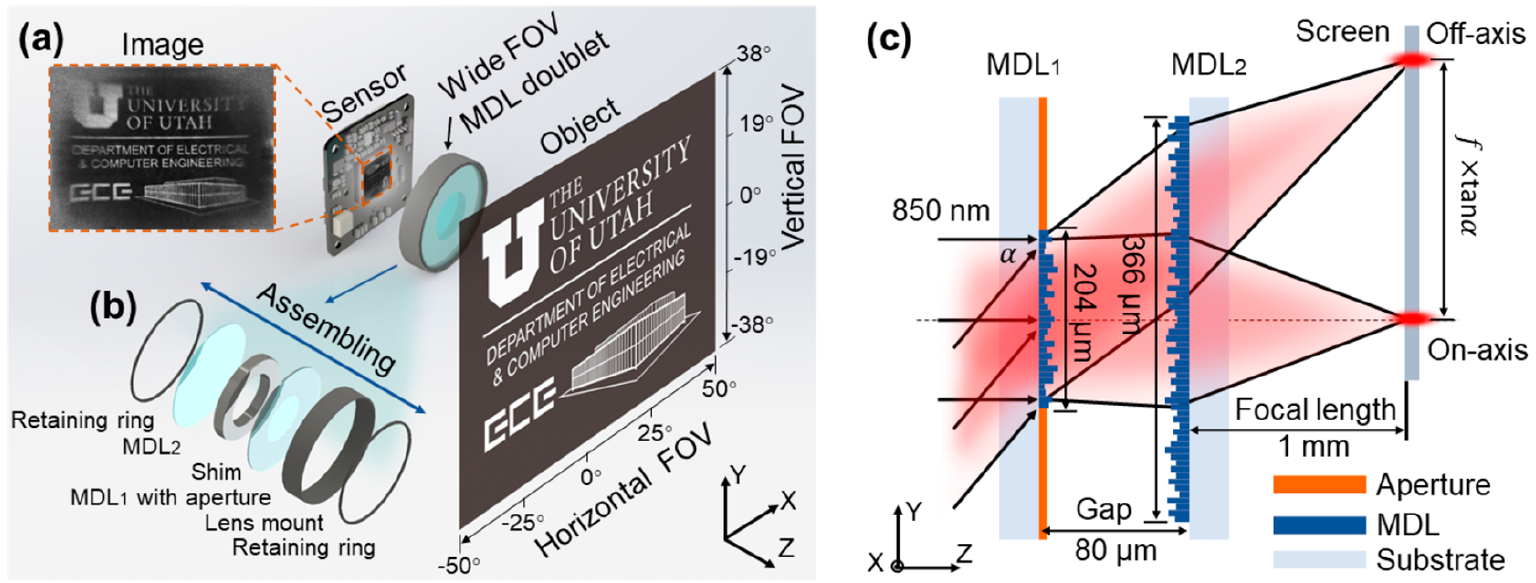

Multi-level diffractive lens (MDL) doublet for 100° FOV imaging. The camera is composed of the assembled doublet placed in proximity to the image sensor…
Recommended citation: Lin, Dajun, et al. "Inverse-designed multi-level diffractive doublet for wide field-of-view imaging." ACS Photonics 10.8 (2023): 2661-2669.
Download Paper
